1500m HD Video Extender

Name: 1500m HD Video Extender
Brand: VINCAN
Price: 1 USD

Brand Name : VINCAN

Model Number : WL-202

Certification : CE,FCC and RoHs

Place of Origin : Mainland China

MOQ : 1 pairs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pairs per week

Delivery Time : 2-3 days

Packaging Details : Carton box and standard export package

DVI Compliance : DVI-D

Distance : 4921ft [1500m]

Max Resolution : 1080p@60Hz

TX Connectors : (1) DVI in, (2)LC

RX Connectors : (1) DVI out, (2) LC

Dimensions : 59 x 39 x 13mm（L/W/H）

Weight : 0.066lbs[30g]

Power Supply : 5V 1A DC

Operation Temperature : 32~131°F [0~55°C]

Storage Temperature : -4~185°F [-20~85°C]

Relative Humidity : 5~95% RH [no condensation]

Contact Now

1500m HD Video Extender

MINI DVI Fiber Optic Extender Over Two Cores

Description:

The WL-202 is part of Winlink ‘s fiber optic transmission family. Simple connections for DVI and Fiber provide a cleaner wiring solution. With two single-mode fiber optic, the WL-202 can go up to 4921 ft (1500m), 1920 * 1200 @ 60 Hz & 1080 p.

Features:

◆Support multi-mode& single-mode fiber optic;
◆ Transmitter with EDID learning;
◆ The highest bandwidth: 1.65Gbps;
◆The highest resolution:1920×1200 @60Hz;
◆ The longest transmission distance: 1500m;
◆ Small, concise, directly connect to DVI interfaces of source and display devices.

Specs:

Video
DVI Compliance	DVI-D
Distance	4921ft [1500m]
Max Resolution	1920*1200@60Hz
Connectors
TX Connectors	(1) DVI in, (2)LC
RX Connectors	(1) DVI out, (2) LC
Mechanical
Dimensions	59 x 39 x 13mm(L/W/H)
Weight	0.066lbs[30g]
Power
Power Supply	5V 1A DC
Environmental
Operation Temperature	32~131°F [0~55°C]
Storage Temperature	-4~185°F [-20~85°C]
Relative Humidity	5~95% RH [no condensation]

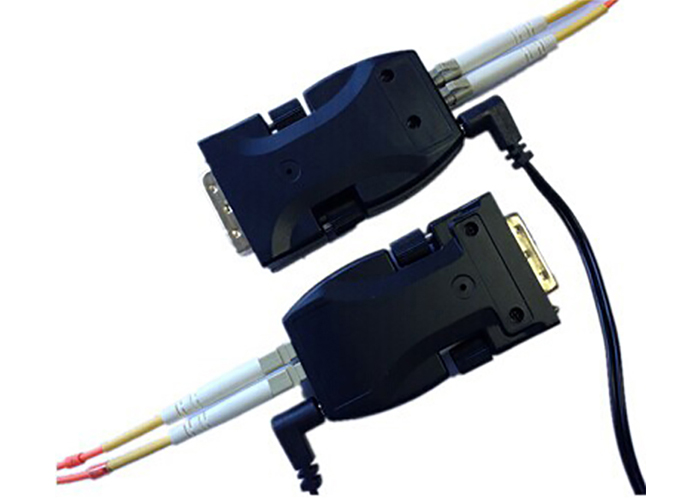

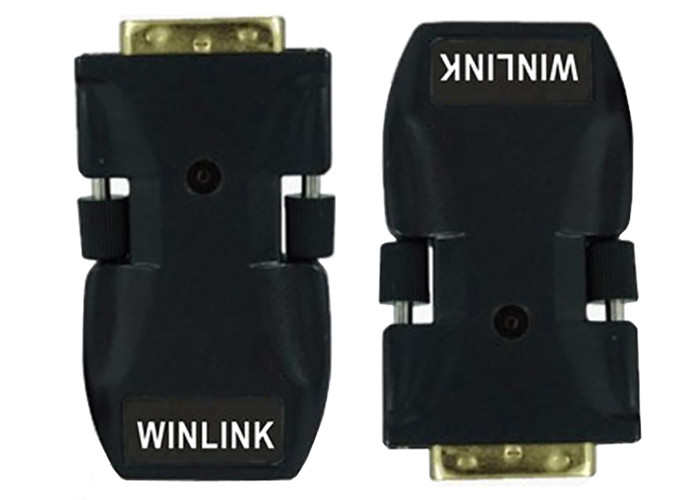

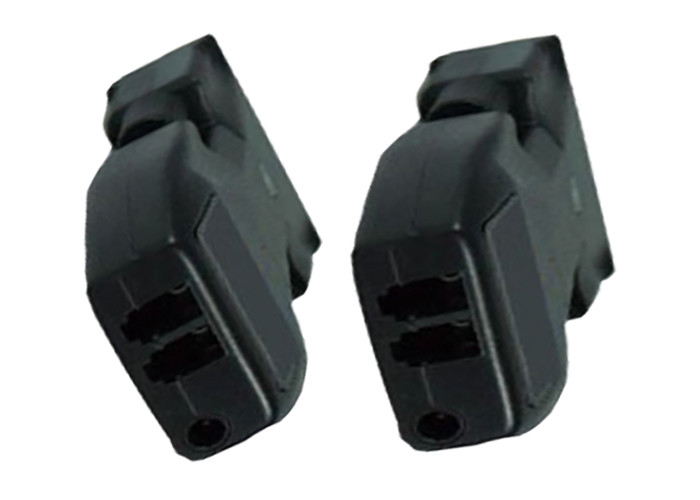

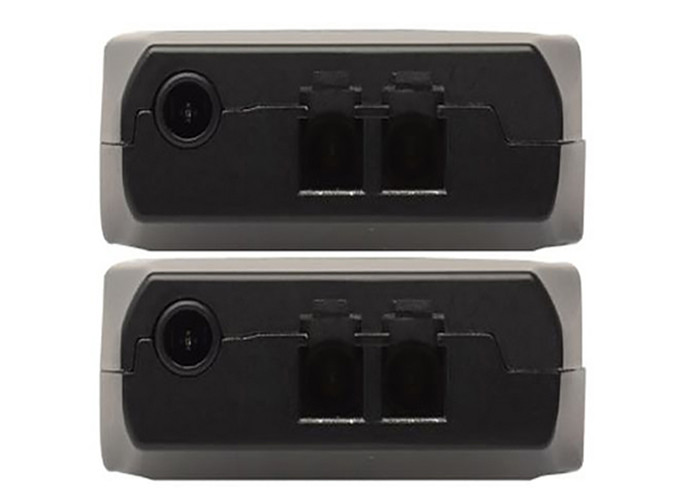

Products' picture:

1500m HD Video Extender

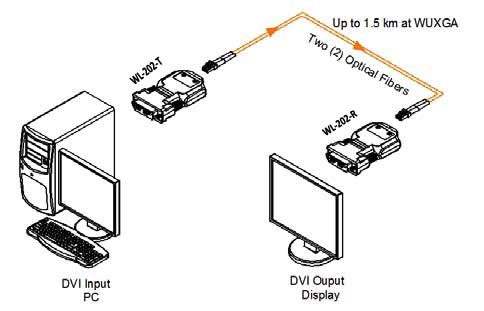

Application:
