1080P MINI 3G SDI HD Video Extender

Name: 1080P MINI 3G SDI HD Video Extender
Brand: VINCAN
Price: 1 USD

1080P MINI 3G SDI HD Video Extender Manufactures

Brand Name : VINCAN

Model Number : WL-800/801

Certification : CE,FCC and RoHs

Place of Origin : Mainland China

MOQ : 1 pairs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pairs per week

Delivery Time : 2-3 days

Packaging Details : Carton box and standard export package for 1080P MINI 3G SDI HD Video Extender

SDI Compliance : 3G/HD/SD SDI

Distance : 5km

Max Resolution : 1080p@60Hz

TX Connectors : (1) SDI in, (1)ST

RX Connectors : (1) SDI out, (1) ST

Dimensions : 95 x 16 x 22mm(L/W/H)

Contact Now

1080P MINI 3G SDI HD Video Extender

1. Product Description:

The Lightspeed 3G-SDI Fiber extender extends the 3D-SDI signal over one Single-Mode Fiber, the distance is up to 5km, it supports SMPTE424M(3G-SDI), SMPTE-292M(HD-SDI)and SMTPE-259(SD-SDI). 1080P MINI 3G SDI HD Video Extender has a ST fiber connector

and a 75ohm BNC electronic connector, the compact metal case provide good EMI performance and easy to fit.

2. Normal and Troubleshooting:

LED Symbol	Color	TX indicator	RX Indicator
Link	Green	For fiber connection: LED on: Laser working	For fiber connection: LED on: Receive the optical signal.
SIG	Green	For SDI Signal: LED on: The TX unit receive the SDI Source signal.	For SDI Signa: LED on: SDI signal output is normal.
PWR	Red	Power Supply Indicator: LED on: Power supply is working.	Power Supply Indicator: LED on: Power supply is working.
Product name		1080P MINI 3G SDI HD Video Extender

3. Shipping Group:

items	Qty.	Unit
Transmitter	1	piece
Receiver	1	piece
USB Wire	2	pcs
User’s manual	1	piece

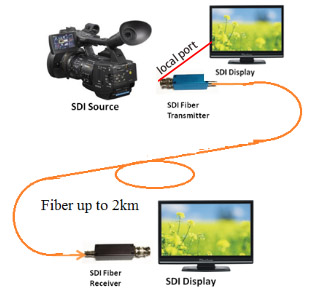

4. Application Diagram of 1080P MINI 3G SDI HD Video Extender:

Product Tags:

SDI HD Video Extender

5km HD Video Extender

3G SDI Extender

1080P MINI 3G SDI HD Video Extender Images
