Product Description:

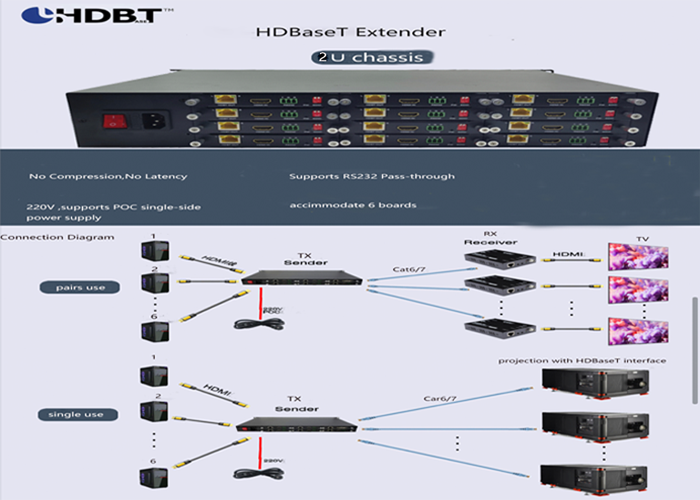

The Rack-Mount HDBaseT Extender is a professional-grade audiovisual device designed to transmit HDMI signals over standard Cat5e/6/7 Ethernet cables,this HDBaseT Extender supporting ultra-high-definition video, multi-channel audio, control signals, and power delivery (PoH) over distances of up to 100 meters . Built for integration into 19-inch rack systems (1U/2U height), it is ideal for centralized management in control rooms, data centers, and large-scale AV installations.This extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
Features:
- Video Resolution: Supports up to 4K@60Hz (4:4:4), 1080p, 720p, and other formats.
- Audio Formats: Supports PCM, Dolby Digital, DTS, and other audio formats.
- Signal Interfaces:
- Input: HDMI 1.4, DVI, VGA, AV, or other input types.
- Output: HDMI, DVI, VGA.
- Control Interfaces: IR (infrared), RS-232, USB, etc.
- Transmission Distance: Typically supports up to 100 meters (328 feet), depending on the quality of the network cable used.
- Transmission Medium: Cat 5e, Cat 6, or Cat 7 network cables.
- Power Supply: Typically requires 5V or 12V DC power.
- Operating Temperature: Usually between 0°C to 50°C.
- Standards: Complies with HDBaseT, HDMI, and CEA-861 standards.
Technical Parameters:
| Technical |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / HDCP 1.x |
| Video Bandwidth | 18Gbps |
HDMI Input / Output
Video Resolution | 4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All PC resolutions including 1920 x 1200 |
| Extended Distance | 70 meters (resolution is up to 1080P60Hz)
40 meters (resolution is up to 4K60Hz 4:4:4) |
| Color Space | RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit,10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]
8-bit [4K60Hz (YCbCr4:4:4)] |
| HDR formats | HDR10, HDR10+, Dolby Vision |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| L/R Audio Formats | PCM2.0CH
Note that If ARC function is on, the audio port will mute. |
| Optical Audio Formats | LPCM2.0, Dolby Digital / Plus, DTS |
Applications:
The Rack-Mount HDBaseT Extender is a cornerstone of professional AV systems, offering long-range, lossless transmission and centralized control. Its integration of video, audio, control, and power over a single cable makes it ideal for broadcasting, healthcare, security, education, and entertainment applications, outperforming traditional HDMI and fiber solutions in versatility and cost-efficiency.
- Broadcasting & Production Studios
- Corporate & Education
- Medical Imaging & Surgery
- Security & Command Centers
- Digital Signage & Entertainment
