Product Description:
The rackmount HDBaseT extender is a device used to extend high-definition audio and video signals (e.g., HDMI, DVI, VGA) as well as control signals (such as IR, RS-232, etc.) over long distances. It utilizes HDBaseT technology to transmit video, audio, and control signals via standard network cables (like Cat 5e/6/7), making it ideal for a variety of applications such as home theaters, conference rooms, broadcasting, and more.

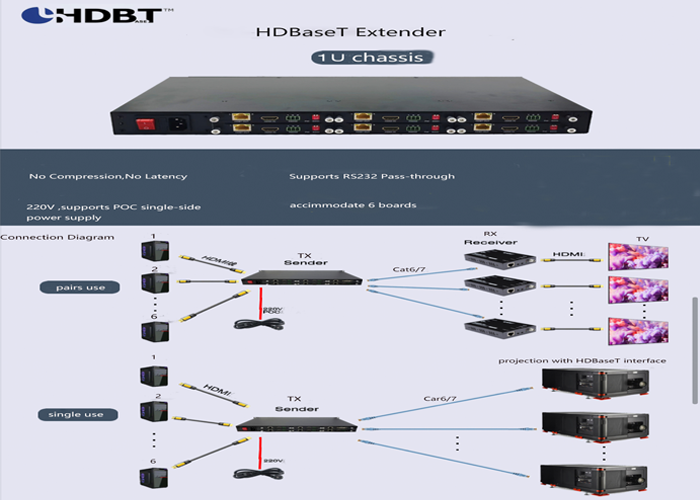

Typically, a rackmount HDBaseT extender consists of a transmitter and a receiver, which are mounted in a standard 19-inch rack for easy integration into larger AV systems. It enables long-distance, high-quality signal transmission without compromising performance, providing flexibility and scalability for complex setups.
Features:
- High-Resolution Support: Supports up to 4K@60Hz 4:4:4 video transmission, meeting the needs for ultra-high-definition video.
- Long-Distance Transmission: Using Cat 5e/6/7 cables, it supports transmission distances up to 100 meters (328 feet), much longer than typical HDMI cables.
- Multifunctional Support:
- Video Transmission: Supports HDMI, DVI, VGA, and other video formats.
- Audio Transmission: Supports high-quality audio formats such as PCM, Dolby Digital, DTS, etc.
- Control Signals: Enables the transmission of IR remote control signals, RS-232 serial control, USB, and more.
- Plug-and-Play: No drivers or complicated configurations are required. It is ready to use after simple connection.
- Strong Anti-Interference: Utilizes Cat 5e/6/7 cabling, which is designed to provide excellent anti-interference capabilities for stable signal transmission.
- Network Compatibility: It can integrate easily with existing network wiring, reducing the need for additional wiring and simplifying the installation process.
Technical Parameters:
| Power Supply (DC) | 220V and supports POC |
| Video Interface | HDMI |
| HDMI Resolution | 1080P/1080i/720P/576P |
| control interface | IR (infrared), RS-232 |
| Compatibility | HDMI 2.0 |
| HDCP version | HDCP2.2 |
| Power Supply | 220V, support POC |
| Product Name | HDMI HDBaseT Extender Video Transmitter Receiver with 6 ports |
| Power adapter format | Input AC (50Hz.60Hz) 100-240V |
| Video Bandwidth | 18Gbps |
| Output interface | HDBaseT (RJ45) + HDMI Loop-Out (optional) |
| Input interface | HDMI 2.0b (HDCP 2.3 compliant) |
Applications:
- Broadcasting & Production Studios
- Distribute 4K camera feeds to control rooms and monitoring screens.
- Live event signal routing (stages to mixing consoles) with ultra-low latency.
- Corporate & Education
- Centralized AV management for multi-room conferencing systems.
- Lecture halls: Extend instructor’s PC signal to rear displays with touch control.
- Medical Imaging & Surgery
- Real-time 4K endoscopy video streaming to training rooms for remote diagnostics.
- RS-232 integration with medical devices (e.g., ultrasound systems).
- Security & Command Centers
- Long-range 4K surveillance camera feeds with PoH support.
Video wall expansion for traffic/emergency monitoring.
